代理WIFI模块， 工业级WIF模块 CC3200  CC3220  ,CC2640

CC3200价格咨询电话18820954295  赵工

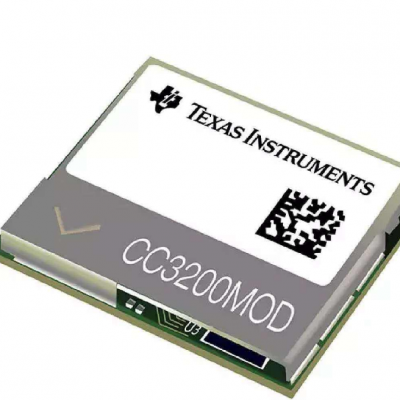

CC3200 是工业级***个 WIFI模块industry’s first Wi-Fi CERTIFIED  single-chip microcontroller unit (MCU) with built-in Wi-Fi connectivity. Created for the Internet  of Things (IoT), the SimpleLink CC3200 device is a wireless MCU that integrates a high-performance  ARM Cortex-M4 MCU, allowing customers to develop an entire application with a single IC. With  on-chip Wi-Fi, Internet, and robust security protocols, no prior Wi-Fi experience is required for  faster development. The CC3200 device is a complete platform solution including software, sample  applications, tools, user and programming guides, reference designs, and the TI  E2E? support community. The device is available in  a QFN package that is easy to layout.

The applications MCU subsystem contains an industry-standard ARM  Cortex-M4 core running at 80 MHz包含一个80M的CORTEX M4.核. The device includes a wide variety of peripherals, including a  fast parallel camera interface, I2S, SD/MMC, UART, SPI, I²C, and  four-channel ADC. The CC3200 family includes flexible embedded RAM for code and data and ROM with  external serial flash bootloader and peripheral drivers.

The Wi-Fi network processor subsystem features a Wi-Fi Internet-on-a-Chip and contains  an additional dedicated ARM MCU that completely offloads the applications MCU. This subsystem includes  an 802.11 b/g/n radio, baseband, and MAC with a powerful crypto engine for fast, secure Internet  connections with 256-bit encryption. The CC3200 device supports Station, Access Point, and Wi-Fi Direct modes. The  device also supports WPA2 personal and enterprise security and WPS 2.0. The  Wi-Fi Internet-on-a-chip includes embedded  TCP/IP and TLS/SSL stacks, HTTP server, and multiple Internet protocols.

The power-management subsystem includes integrated DC-DC converters supporting a wide  range of supply voltages. This subsystem enables low-power consumption modes, such as the hibernate  with RTC mode requiring less than  4 ?A of current.

CC3200性能参数

• CC3200 SimpleLink Wi-Fi—Consists of
  Applications Microcontroller, Wi-Fi Network
  Processor, and Power-Management Subsystems

• Wi-Fi CERTIFIED? Chip

• Applications Microcontroller Subsystem

• AES, DES, and 3DES

• SHA2 and MD5

• CRC and Checksum

• RAM (Up to 256KB)

• External Serial Flash Bootloader, and
  Peripheral Drivers in ROM

• ARM? Cortex?-M4 Core at 80 MHz

• Embedded Memory

• 32-Channel Direct Memory Access (?DMA)

• Hardware Crypto Engine for Advanced Fast
  Security, Including

• 8-Bit Parallel Camera Interface

• 1 Multichannel Audio Serial Port (McASP)
  Interface with Support for Two I2S Channels

• 1 SD/MMC Interface

• 2 Universal Asynchronous Receivers and
  Transmitters (UARTs)

• 1 Serial Peripheral Interface (SPI)

• 1 Inter-Integrated Circuit (I²C)

• 4 General-Purpose Timers with 16-Bit Pulse-
  Width Modulation (PWM) Mode

• 1 Watchdog Timer

• 4-Channel 12-Bit Analog-to-Digital Converters
  (ADCs)

• Up to 27 Individually Programmable, Multiplexed
