JW5087DESCRIPTION

FEATURES

The  JW

?

H5087  is    a  monolithic  buck    switching

Optimized for 12V bus application

20A output current

l

l

l

l

l

regulator   based     on   I2    architecture   for     fast

transient response. Operating   with an input range

Differential output voltage   remote sense

Programmable accurate current   limit level

±0.5%   reference voltage over 0℃  to +70℃

junction temperature range

of

8.8V~16V,

JWH5087

delivers

20A

of

continuous  output     current  with   two    integrated

N-Channel MOSFETs.  The internal  synchronous

power  switches    provide  high  efficiency    without

the   use    of   an   external    Schottky   diode.  The

operation frequency is set  easily to 700 kHz, 800

kHz, or  1000 kHz    with the  MODE configuration,

allowing   the     JWH5087   frequency   to     remain

constant   regardless    of   the   input     and   output

voltages.

l

l

l

l

FCCM operation mode

Power good indicator

Programmable soft-start time

Selectable switching frequency   from 700kHz,

800kHz, and 1000kHz

l

l

l

l

Output discharge function

Non-latch OCP, UVP, OVP, UVLO

Thermal protection

JWH5087   guarantees    robustness   with   output

short protection,  over-voltage protection,  thermal

protection and under voltage   protection.

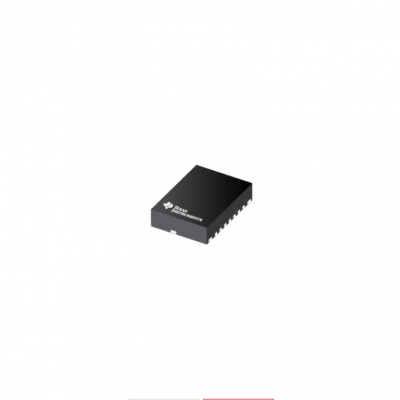

Available in QFN3X4-21 package

APPLICATIONS

l

l

l

l

Telecom and Networking Systems

Server, Cloud-Computing, Storage

Base Stations

JWH5087  is available  in    QFN3×4-21  package,

which  provide    a  compact solution  with    minimal

external components.

General Purpose Point-of-Load
