| 产品特性：SGM | 品牌：SG-MICRO | 型号：SGM8276-1 |
| 类型：放大器 | 用途：电动玩具 | 封装：SOP |
| 系列：SGM8 | 批号：2018+ | 产品说明：OP |
| 应用领域：3C数码 |
GENERAL DESCRIPTION
The SGM8276-1 (single), SGM8276-2 (dual) and
SGM8276-4 (quad) are low noise, high precision, high
voltage operational amplifiers, which can operate from
3.3V to 36V single supply or from 卤1.65V to 卤18V dual
power supplies. They provide rail-to-rail input with a
wide input common mode voltage range and rail-to-rail
output voltage swing.
The SGM8276-1/2/4 provide high slew rate, low noise,
low offset, drift and bias current.

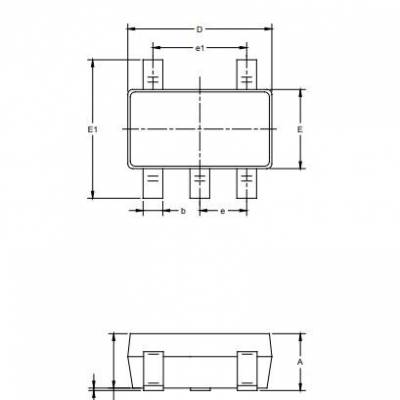

The SGM8276-1 is available in a Green SOT-23-5
package. The SGM8276-2 is available in a Green
SOIC-8 package. The SGM8276-4 is available in a
Green SOIC-14 package. They are specified over the
extended -40鈩� to +125鈩� temperature range.
FEATURES
鈥� Rail-to-Rail Input and Output
鈥� Wide Input Common Mode and Differential Voltage
Ranges
鈥� Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
鈥� Low Input Bias Current
鈥� Low Input Offset Current
鈥� Output Short-Circuit Protection
鈥� High Input Impedance
鈥� Low Noise: 10nV/鈭欻z at 1kHz
鈥� Gain-Bandwidth Product: 10MHz
鈥� High Slew Rate: 8V/碌s
鈥� -40鈩� to +125鈩� Operating Temperature Range
鈥� Small Packaging:
SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package
APPLICATIONS
High Impedance Sensors
Photodiode Amplifiers
High End, Professional Audio
DAC Output Amplifiers
Medicals
