VL53L5 a FlightSenseTMproduct Time-of-Flight mini depth camera Data brief Features ? Fully integrated miniature module– Emitter: 940 nm invisible vertical cavity surface emitting laser (VCSEL) and integrated analog driver– 61 ° diagonal square system field of view (FoV) using diffractive optical elements (DOE) on both transmitter and receiver– Receiving array of single photon avalanche diodes (SPADs) in both transmitter and receiver apertures– Low-power microcontroller running firmware– Size: 6.4 x 3.0 x 1.5 mm ? Fast, accurate distance ranging– Parallel multi zone output; either 4x4 or 8x8 separate regions of interest (ROI)– Up to 400 cm ranging– 60 Hz frame rate capability– Histogram processing and algorithmic compensation minimizes or removes impact of cover glass crosstalk– Fully autonomous device with on-board histogram and ranging processing running on ST in-house 32Bit MCU 19 October 2020– Dynamic crosstalk compensation for fingerprint smudge via latest patented ToF techniques ? Easy integration– Flexible power supply options, single 3.3 V or 2.8 V operation or combination of either 3.3 V or 2.8 V AVDD with 1.8 V IOVDD– Compatible with wide range of cover glass materials– I?C or SPI interface– Low-power pin and two general purpose inputs (GPIOs) for interrupt and synchronization– Full set of software drivers (Linux and Android compatible) for turnkey Applications ? Laser assisted autofocus (LAF). Enhances the camera AF system speed and robustness especially in difficult low light or low contrast scenes. Ideal companion for phase detection autofocus (PDAF) sensors. ? Scene understanding. Multi-zone and multi object distance detection enables touch-to focus or focus bracketing for best shot selection. ? Camera assist. Further camera assistance by enabling flash dimming, indoor/outdoor detection and background removal assist ? Augmented reality/virtual reality (AR/VR) enhancement. Dual camera stereoscopy and 3D depth assistance thanks to multi zone distance measurement ? Video focus tracking. 60 Hz ranging allows optimization of continuous focus algorith

VL53L系列（STMicroelectronics）核心优势

1. 精准测距

• 测量范围：VL53L0X（2m）、VL53L1X（4m）、VL53L5CX（多区域测距，4m）。

• 精度：±3%误差（短距离），抗环境光干扰强。

2. 低功耗设计

• 待机电流低至5?A，适合电池供电设备（如IoT、穿戴设备）。

3. 小尺寸集成

• 封装仅4.4×2.4×1mm，易于嵌入紧凑设计。

4. 多场景适用

• 手机（自动对焦）、机器人避障、工业液位检测等。

二、主流竞品对比分析

关键结论：

• 短距高性价比：VL53L系列优于TMF8801；

• 工业级精度：OPT3101更专业但成本高；

• 长距离需求：需选择Garmin等专业LiDAR。

三、推广网文框架（标题与内容建议）

标题示例

• “VL53L5CX：重新定义智能设备的‘感知力’，4米精准测距仅指尖大小！”

• “ToF传感器怎么选？ST的VL53L系列三大场景完胜竞品！”

正文结构

1. 痛点引入

• “智能设备为何总撞墙？传统红外传感器在复杂光线下误差大、功耗高…”

2. 产品亮点

• 精准：±3%误差，黑暗/强光下稳定工作；

• 灵活：支持多区域检测（如VL53L5CX可划分64区）；

• 省电：5?A待机，智能家居设备续航提升30%。

3. 应用场景

• 智能家居：自动感应灯、马桶冲水控制；

• 消费电子：手机快速对焦、平板防误触；

• 工业：AGV小车避障、物料高度检测。

4. 客户案例

• “某扫地机器人品牌采用VL53L1X，避障成功率提升至***”（需替换为真实案例）。

5. ***推广

• “ST官方开发套件8折，提供完整SDK支持！”（附***链接/代理商联系方式）。

ToF传感器、激光测距模块、低功耗避障方案、VL53L5CX替代方案

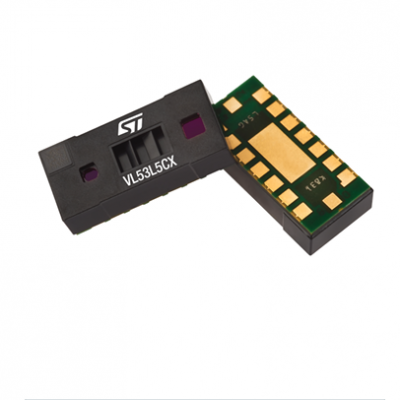

Time-of-Flight 8x8 multizone ranging sensor with wide field of view Product status link VL53L5CX Features ? Fast and accurate multizone distance ranging sensor– Multizone ranging output with either 4x4 or 8x8 separate zones– Autonomous Low-power mode with interrupt programmable threshold to wake up the host– Up to 400 cm ranging– Multitarget detection and distance measurement in each zone– 60 Hz frame rate capability– Histogram processing and algorithmic compensation minimizes or removes impact of cover glass crosstalk– Motion indicator for each zone to show if targets have moved and how they have moved ? Fully integrated miniature module with wide field of vie
oV)– Emitter: 940 nm invisible light vertical cavity surface emitting laser (VCSEL) and integrated analog driver– 63° diagonal square FoV using diffractive optical elements (DOE) on both transmitter and receiver– Receiving array of single photon avalanche diodes (SPADs)– Low-power microcontroller running Firmware– Size: 6.4 x 3.0 x 1.5 mm ? Easy integration– Single reflowable component– Flexible power supply options, single 3.3 V or 2.8 V operation or combination of either 3.3 V or 2.8 V AVDD with 1.8 V IOVDD– Compatible with wide range of cover glass materials Applications ? Scene understanding. Multizone and multi-object distance detection enables 3D room mapping and obstacle detection for robotics applications ? Wide FoV and multizone scanning allows content management (load in trucks, tanks, waste bins) ? Gesture recognition ? Liquid level control ? Keystone correction for video projectors ? Laser assisted autofocus (LAF). Enhances the camera AF system speed and robustness especially in difficult low light or low contrast scenes ? Augmented reality/virtual reality (AR/VR) enhancement. Dual camera stereoscopy and 3D depth assistance thanks to multizone distance measurement ? Smart buildings and smart lighting (user detection to wake up devices) ? IoT (user and object detection) ? Video focus tracking. 60 Hz ranging allows optimization of continuous
